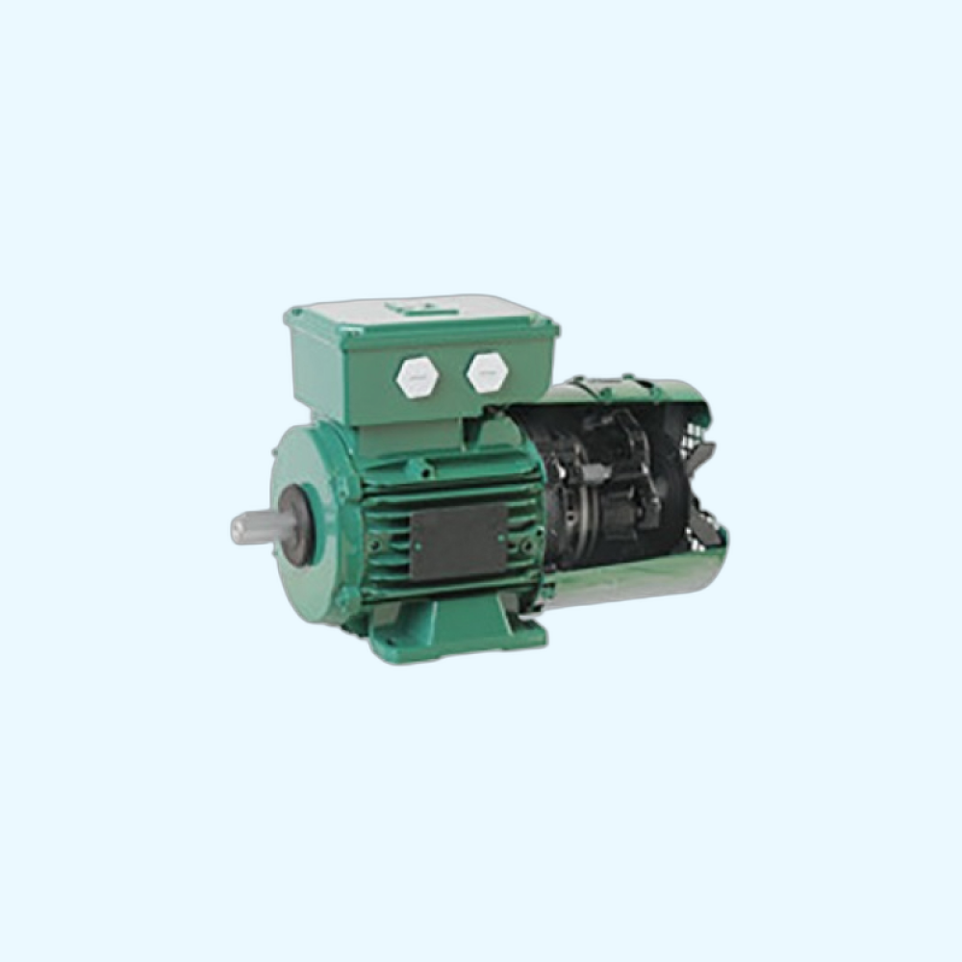

FFB
Failsafe brake operating when supply off (a braking force is applied when de-energized) on LS non-IE, IE3 asynchronous three-phase IMfinity® motors range.
Advantages:
Reliability and robustness Performance and safety Flexible conception Supervision on brake duties: wear indicator microswitch, tightening and loosening indicator microswitch Auto-return brake release systems: simple, lock off or remote lever Variable speed construction: thermal protection, encoder and/or forced ventilation Always give customers a human to chat to
Main Characteristics
| Power supply frequency | Hz | 50 and 60 |
|---|---|---|
| Voltage | V | (0,25 to 5,5 kW) : 230 ∆ | 380 Y | 400 Y | 415 Y - 460 Y ou 400 ∆ (7,5 to 15 kW) : 380 ∆| 400 ∆ | 415 ∆| 690 Y - 460 ∆ |
| Braking torque | N.m | 4,5 up to 200 |
| Power | kW | 0,12 up to 22 |
| Frame size | mm | 71 up to 180 |
| Number of poles | 1 speed : 2 - 4 - 6 | |
| Ingress protection | IP | 55 |
| Shaft type | steel |
