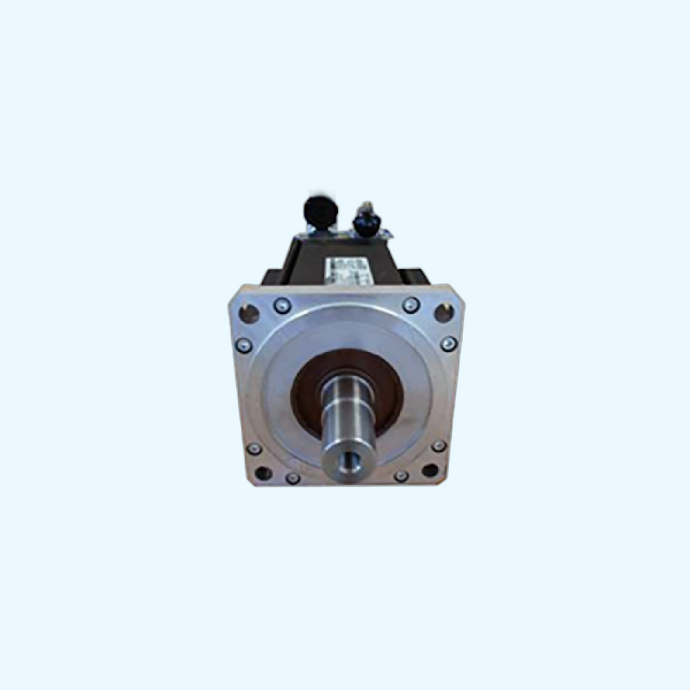

Housed Torque Motor
Our housed torque motors provide high torque density at low speed in a traditional motor frame.
Available with the full standard range of Unimotor hd servo encoders, the motors can be configured to your specific requirements.
Advantages
Direct Drive Technolog
- High torque with low speed for maximum precision
- Increased motor stiffness for dynamic operation
- Short motor lengths
- Easy maintenance
- Less vibration for quiet operation
- Increased efficiency
- No need for mechanical transmission elements (gearboxes etc)
Range of options for customization
- Large selection of encoders
- Adapted shafts and flanges
- Wide variety of connections
Main Characteristics
Ingress protection | IP | 65 |
---|---|---|
Stall Torque | N.m | 20 to 35 |
Peak Torque | N.m | 60 to 105 |
Voltage | V | 380/480 |
Max speed | rpm | 1500 |
Frame Size (square) | mm | 142 |
Motor length | mm | 187 to 247 |
