Mjd Dynabloc
Backlash from 1 to 10 arcmin (Low backlash BASIC/MEDIUM/EXPERT)
Ratios from 5 to 90 (one stage)

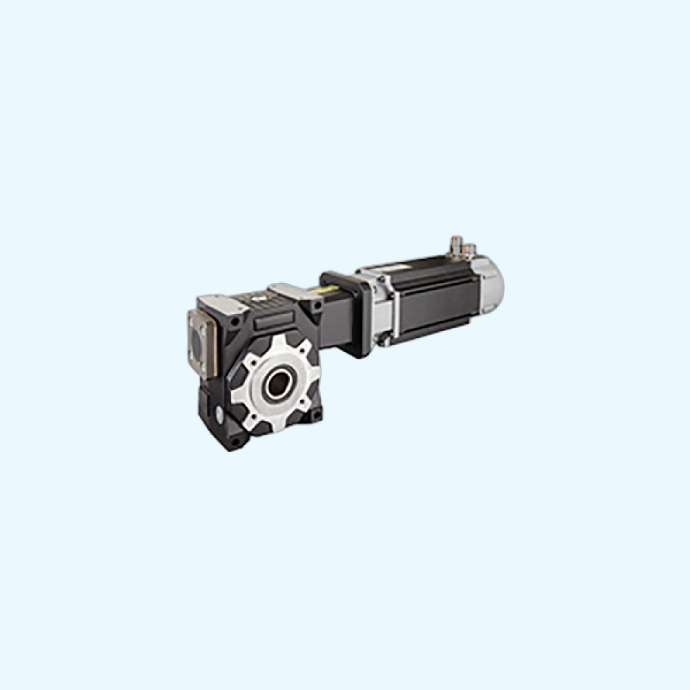

Mjd Dynabloc is a range of high-precision geared servo motors for applications requiring reduced backlash.
The high-efficiency worm gearbox provides very low backlash and very high torsional stiffness. This guarantees motor stability even at dynamic operation with high inertia loads. The gearbox’s right angle design and multiple mounting positions help to save space for easy integration into machines. The worm design offers the added advantage of quiet operation.
The Mjd Dynabloc range can be fitted with Unimotor hd or fm servo motors depending on the required application:
Unimotor hd – designed for pulse duty applications requiring high dynamics
Unimotor fm – ideal for continuous duty applications with high inertia loads
Advantages
- Very low backlash
- Very High torsional stiffness
- High-efficiency worm gearbox
- High inertia option available with fm motor
- Space-saving right angle design
- Multiple shafts and mounting positions for easy integration into machines
- Quiet operation
- Maintenance free
- Lubricated for life
Main Characteristics
Rated torque | N.m | 23 to 668 |
---|---|---|
Max acceleration torque | N.m | Up to 1100 |
Gearbox ratio | 5 to 90 | |
Backlash | arcmin | BASIC: 10 MEDIUM: 5 EXPERT: 1 |
Motor | Unimotor hd or Unimotor fm | |
Motor speed | rpm | 3000 |
Efficiency | % | Depending on ratio |
Output shaft | Plain shaft with key Keyed hollow shaft or unkeyed with shrink disk | |
Mounting | Foot or flange with tapped holes (B14) |
