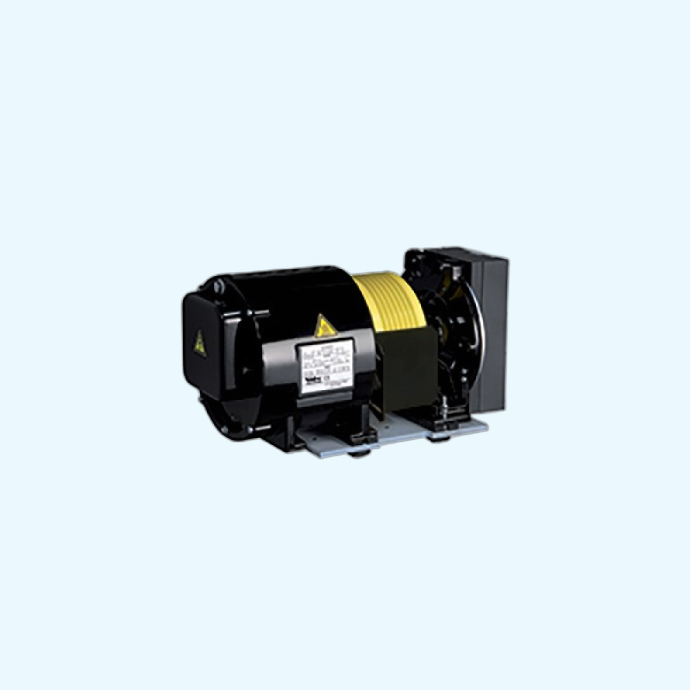

E27
Gearless with central pulley
Advantages
- Ultra-compact and light, ideal for new elevators
- Design with central pulley
- Excellent comfort and very low noise level
- Hardened pulley as standard
Main Characteristics
| Shaft load | kg | 1500 to 2500 |
|---|---|---|
| Maximum braking torque per brake | N.m | 140 to 290 |
| Breakdown torque | N.m | 190 to 445 |
| Rated torque | N.m | 125 to 305 |
| Pulley diameter | mm | 160 to 180 |
| Ingress protection | IP | 20 |
| Number of poles | 24 | |
| Voltage | V | 180 to 400 |
| Maximum speed | rpm | 400 |
