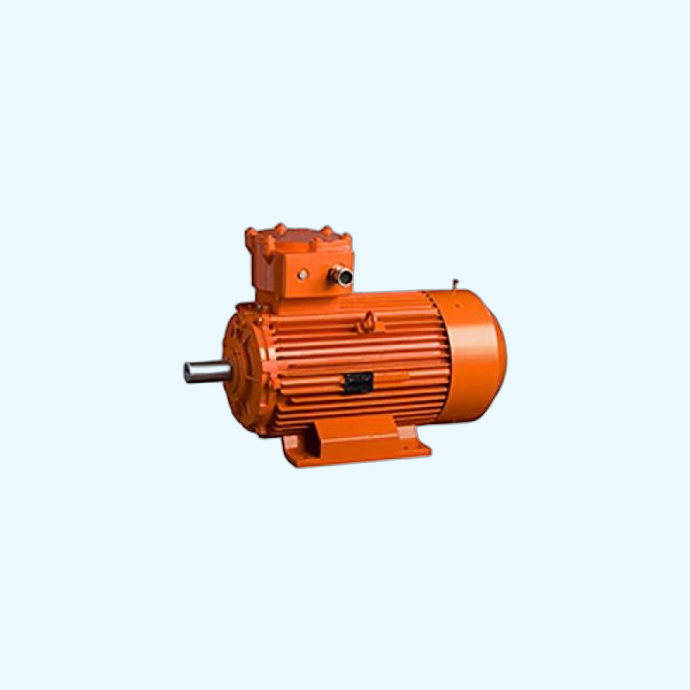

FLSD – ZONE 1
ATEX Gas – Cast iron frame – Flameproof 0.75 to 200 kW
Advantages
- Flameproof motor for use in zone 1 – Ex db oR Ex db eb IIB / IIC
- Flameproof or increased safety terminal box
- Efficiency levels in accordance with IE2 or IE3 class
- Designed for corrosive, harsh environments
- Double certification ATEX AND IECEx
- Use with variable speed possible
- Optional VIK finish
Main Characteristics
| Power supply frequency | Hz | 50 or 60 |
|---|---|---|
| Frame size | mm | 80 to 315 |
| Ingress protection | IP | 55, 66 |
| Number of poles | 2, 4, 6 | |
| Power | kW | 0.75 to 200 |
| Safety | Motors conforming to European Directive ATEX 2014/34/UE | |
| Voltage | V | 400/415 V - 50Hz460 V - 60Hz |
| Shaft type | steel |
