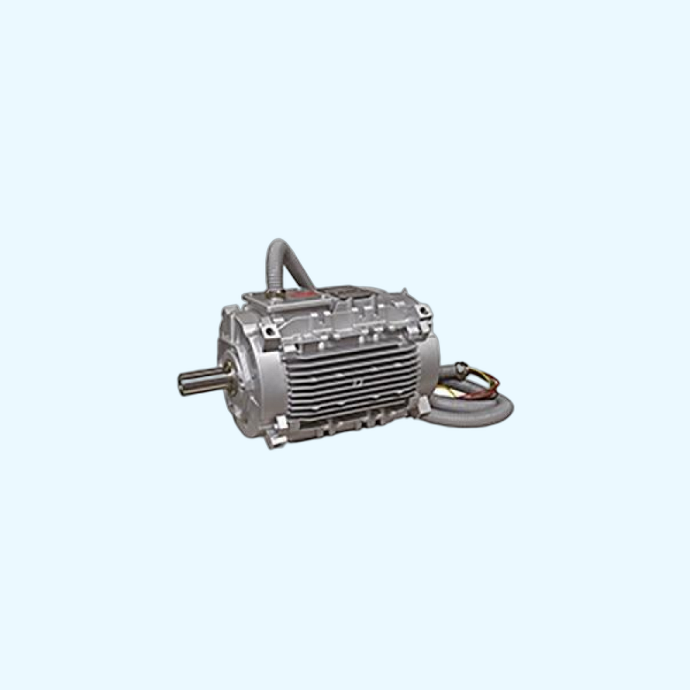

LSHT / FLSHT
Fan motors for smoke extractor fans 0.55 to 675 kW
Advantages
- High-efficiency IE2 and Premium efficiency IE3 three-phase induction motors, based on IMfinity® platform
- Compliant with European smoke extraction safety standards EN 12101-3.
- Continuous operation at 40°C and in the event of fire up to 400°C.
- Compact: IC418 cooled by the airflow of the driven fan.
- Fixings and connections adapted to the application. Pad-mounted motor and high-temperature output cables.
Main Characteristics
| Power supply frequency | Hz | 50 and 60 |
|---|---|---|
| Frame size | mm | Alu. (LSHT): 80 to 280 - Cast iron (FLSHT): 80 to 450 |
| Ingress protection | IP | 55 or 65 |
| Number of poles | Single speed: 2, 4, 6 and 8 two-speed 2/4, 4/6, 4/8, 6/8, 6/12 | |
| Power | kW | 0.75 to 675 |
| Cooling | IC 418 | |
| Safety | Motors certified compliant with: European standard 12101-3 (CTICM) | |
| Voltage | V | 230 / 690 |
