Unimotor FM
Continuous duty servo motor
1.4 to 136 Nm (408 Nm peak)
075 to 250 Frames

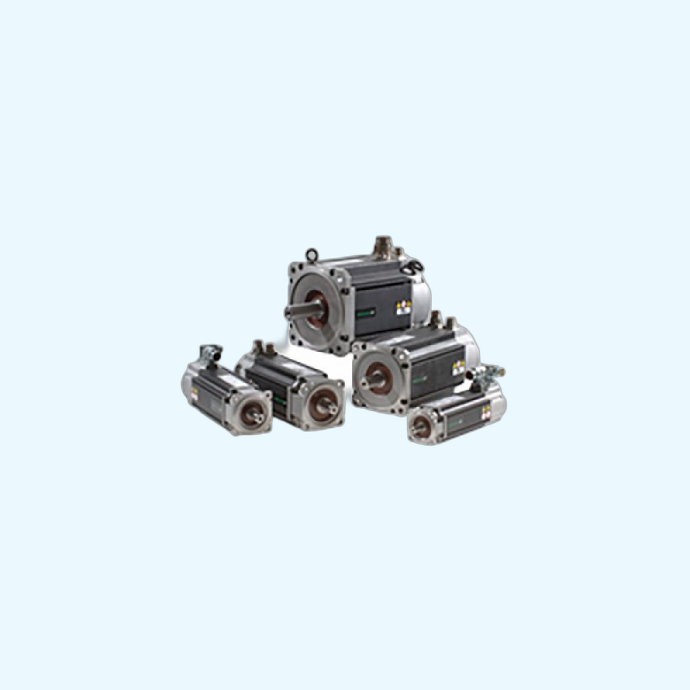

Unimotor FM is a high-performance brushless AC servo motor range. "FM" stands for flexible motor, designed to accommodate a wide range of applications. The motors are available in six frame sizes with various mounting arrangements and motor lengths.
Unimotor FM provides high-precision over an extended duration requiring lower acceleration and deceleration rates. The motor is optimized for high stability in precision profiling applications including:
- Printing
- Winding
- Machining
- Hoisting
Unimotor FM motors are a perfect match to Unidrive M and Digitax ST servo drives.
Conformance And Standards:
Frame Sizes | 75 | 95 | 115 | 142 | 190 | 250 |
Rated Torque (Nm) | 1.4 – 4.7 | 2.5 – 9.3 | 3.9 – 16.0 | 6.2 – 25.0 | 11.3 – 77.0 | 92.0 – 136.0 |
Peak Torque (Nm) | 4.3 – 14.0 | 7.4 – 27.8 | 11.7 – 48.0 | 18.6 – 75.0 | 33.8 – 231.0 | 276.0 – 408.0 |
Advantages
Wide torque range
Unimotor FM offers the widest torque range, from 1.4 Nm – 136 Nm
Maximum flexibility
The flexibility of the Unimotor FM range ensures the best fit for your application, options include:
- Various feedback devices: as standard, an incremental encoder is fitted as this offers an optimum balance of cost and performance. SinCos, EnDAT and Hiperface can be selected for increased resolution and Resolver feedback is available for increased reliability in extreme environments
- High inertia versions: allow the motor inertia to be more closely matched to the load inertia for increased performance and stability
- High energy parking brakes
- Numerous connector variants e.g vertical, 90° low profile, 90° rotable and hybrid box
- Various voltage and speed ranges
- Various shafts (keyed or plain) and flanges (IEC/NEMA)
- Geared solution available: Dynabloc Geared Servo Motors
Main Characteristics
Ingress protection | IP | 65 |
---|---|---|
Stall Torque | N.m | 1.4 to 136 |
Peak Torque | N.m | 2.9 to 410 |
Voltage | V | 200/240 or 380/480 |
Speed | rpm | 1000 to 6000 |
Frame Size | mm | 75 / 95 / 115 / 142/ 190 / 250 |
